Wellcraft 302 Fisherman
The 302 Fisherman, specializing in offshore boating, provides all the provisions anglers need to hook, land, and stow large gamefish. This vessel is spacious and multifunctional to ensure you're ready for stress-free fishing and cruising.
Max Load
4100 lbs
Fuel Capacity
268 gal
Beam
9' 8"

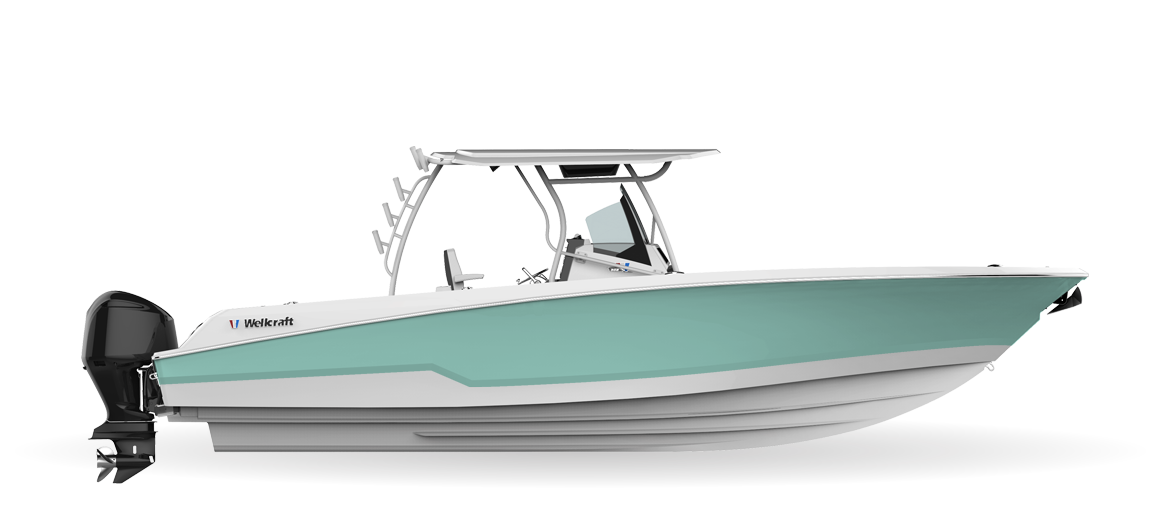

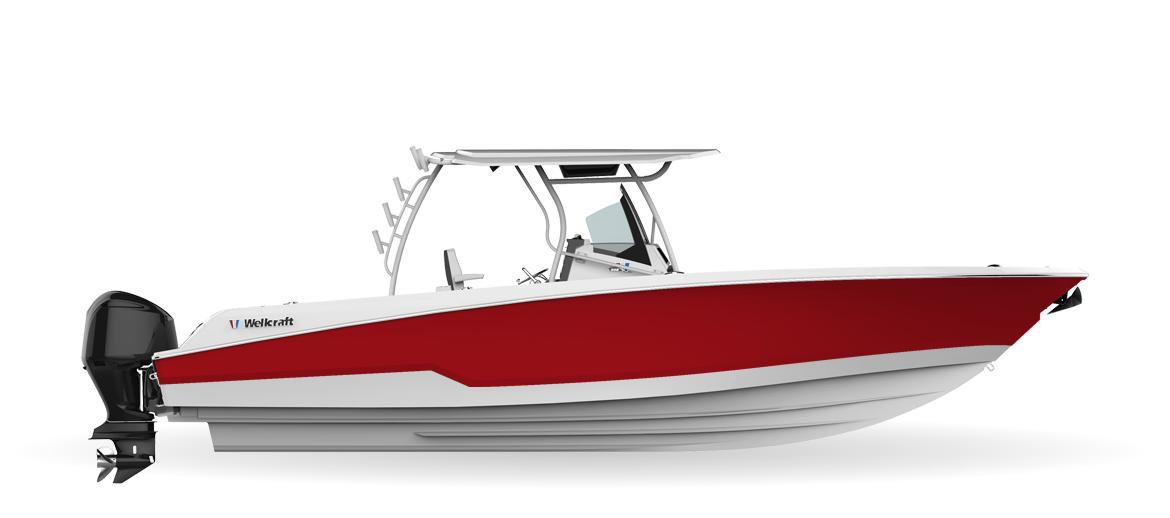

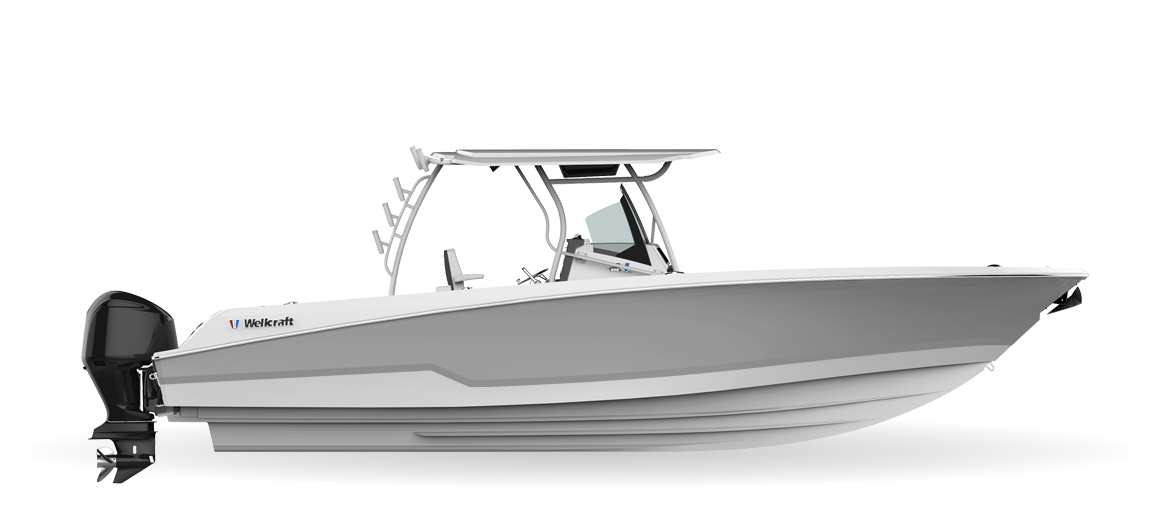

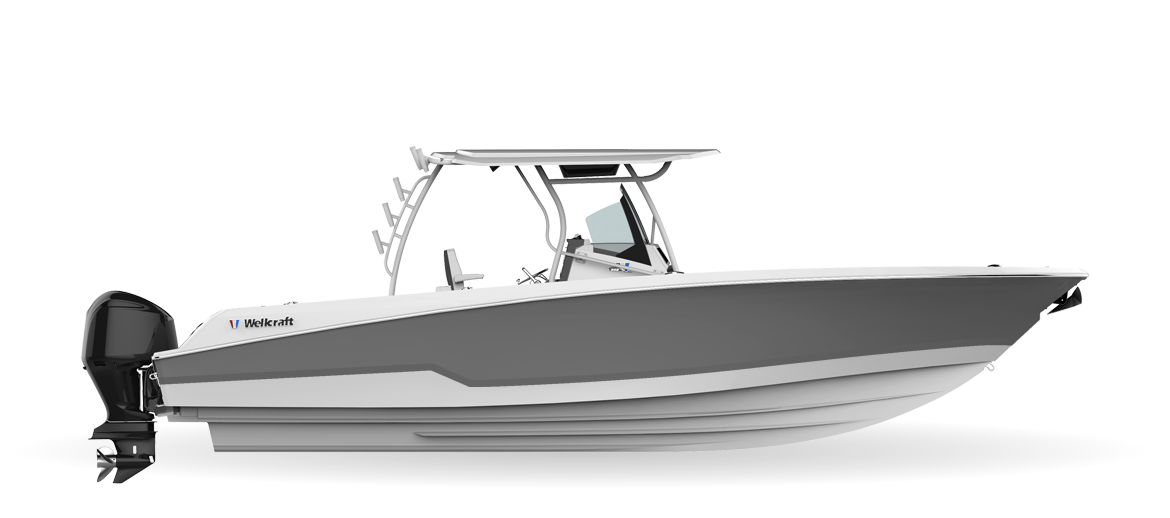

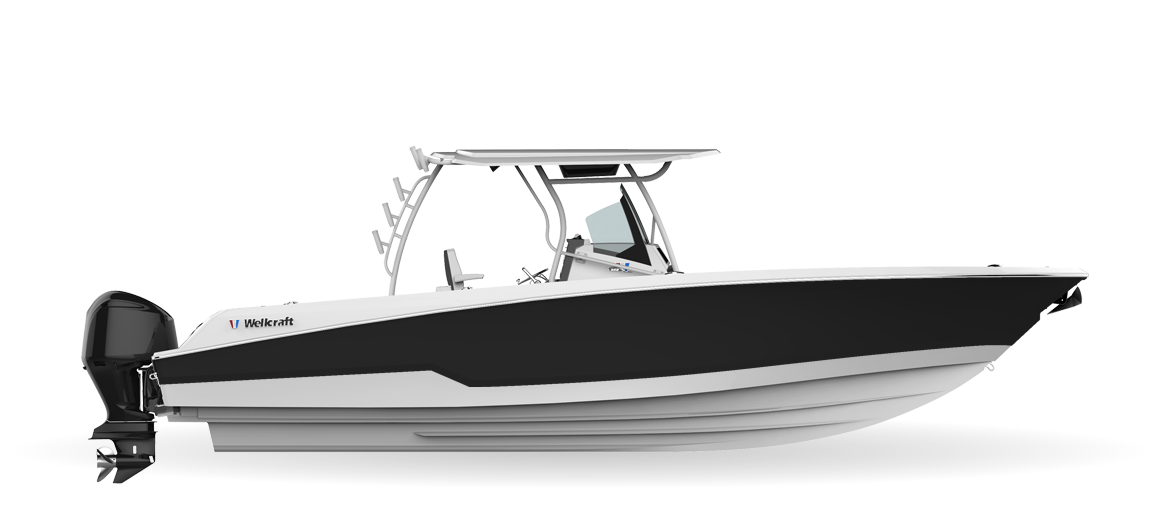

Color Options
Start building your 302 Fisherman by selecting one of the color options below.
| Approx. Boat & Engine Weight | 9200 lbs | 4173 kg |
| Approx. Draft Down | 31" | 79 cm |
| Approx. Draft Up | 23" | 58 cm |
| Beam | 9' 8" | 2.9 m |
| Bridge Clearance w/T-Top | 8' 2" | 2.5 m |
| Deadrise | 22° | 22° |
| Fuel Capacity | 268 gal | 1014 L |
| Hull Length | 30' | 9.15 m |
| L.O.A | 30' 2" | 9.2 m |
| Max HP | 800 | 597 kW |
| Maximum Capacity | Yacht | 1860 kg |
| Persons Capacity | Yacht | 12 |
| Total height on Trailer w/Top | 11' 11" | 3.6 m |
| Water Capacity | 13 gal | 49 L |
Hull and Deck
- Anchor locker w/ lid, latch & tie off
- Anchor roller, bow
- Bow & stern eyes, stainless steel
- Bow anchor roller
- Bow rails, recessed
- Cleats, pull-up, stainless steel
- Exterior color scheme, all white
- Fiberglass stringer system
- Horn
- Ladder, stern, retractable
- Meets applicable uscg & canadian regs; nmma certified using abyc stds.
- Navigation lights, LED
- Powdercoat, choice of color (leaning post and optional T-top frame)
- Powdercoat, white
- Rod holders, deck-mount
- Rod holders, stern, transom mount
- Rub rail w/ stainless steel insert
- Thru-hull fittings, stainless steel
- Transom lighting, LED
- Under hardtop color scheme, all white
- Underwater fittings, bronze
- Winning edge owner protection plan
Cockpit
- Assist handles, powdercoat
- Baitwell, stern w/ bluecoat, light & timer, 23 gal (2)
- Beverage holder(s), stainless steel
- Bucket in holder, bow, 5 gal
- Coaming bolsters w/ rich hand-fitted vinyl & comfort padding
- Cockpit sink w/transom shower & fresh water system
- Cooler, helm seat, carry-on w/ slider & drain-able storage
- Courtesy light(s)
- Cutting station, aft
- Deck lids, easy-clean underside w/ flush-mount hinges
- Fiberglass liner, skid-resistant, self-draining
- Helm seating, dual captain chair w/ armrests
- Interior color scheme, choice of color
- Non-skid, mechanical pattern
- Rod storage, gunnel
- Seating, aft folding bench(es)
- Seating, forward lounge
- Self bailing cockpit
- Storage, bow
- Storage/fishbox(es), floor w/ macerator and overboard drain
- Tackle storage w/ boxes
- Transom door
- Upholstery, premium vinyl w/ drain/dry-fast marine-grade foam
- Water intrusion management systems
Helm
- Cell phone holder
- Compass
- Custom gauges. system matched
- Steering wheel, stainless steel
Entertainment
- Stereo system w/ deluxe T-Top, 4 speakers (req. deluxe T-top)
- Stereo system, 4 Speakers
- USB ports
Engine / Systems / Drive
- Active trim (Mercury only)
- Battery on/off switch
- Battery tray(s)
- Bilge pump, automatic
- Hydraulic tilt steering (std on 150 hp and up)
- Mercury Power Steering (200HP Only)
- Outlet, 12V
- Outlet, USB charge port(s)
- Raw Water Wash Down
- Trim tabs w/ LED indicators
- Yamaha Power Assisted Steering (200HP Only)
Power Options
- Yamaha® Twin F300 XSB
Interior Color
- Carbon Fiber
Console / Cabin
- Changing room, w/ sink, faucet & electric toilet
- Counter top, corian
- Flooring, fiberglass liner
- Head, electric, porcelain toilet w/ holding tank
- Lighting
- Mirror
- Outlets, 110v (Inc. w/ dockside power)
- Port light window, opening
- Storage, curtains
- Windshield, deluxe w/side entry door
T-Tops
- T-top, deluxe w/ ladder back, LED lights, electronics box, spreader lights, rod holders & phone holder
Hull Color
- Wellcraft White Top
PERFORMANCE
Wellcraft offers you a selection of the best engines from leading manufacturers. Reliable performance that gets you where you want to go.
- Mercury® Twin 300 XL Verado
- Mercury® Twin 350 XL Verado White
- Mercury® Twin 350 XL Verado
- Mercury® Twin 350 XL Verado JPO
- Mercury® Twin 350 XL Verado JPO White
- Mercury® Twin 300 XL Verado JPO
- Mercury® Twin 300 XL Verado JPO White
- Yamaha® Twin F300 XSB2 White
- Yamaha® Twin F300 XSB2 with Helm Master White
- Mercury® Twin 300 XL Verado White
- Mercury® Twin 400 XL Verado
- Mercury® Twin 400 XL Verado White
- Mercury® Twin 400 XL Verado JPO
- Mercury® Twin 400 XL Verado JPO White
- Yamaha® Twin F300 XSB with Helm Master
- Yamaha® Twin F300 XSB
YEARS OF WORRY-FREE BOATING WITH THE WELLCRAFT WARRANTY
Transferable
Our lifetime limited warranty on the structural components of the hull and deck make it one of the finest protection plans in the industry. Most Winning Edge limited warranties are transferrable, increasing the value of your Wellcraft. See your Wellcraft dealer for specific information regarding warranty coverage.
COMPONENTS
The exclusive factory warranty covers material, labor, and most boat components for three years; exceptions apply. Our customer service experts use state of the art technology for claim processing; a direct link to the craftsmen/professionals that manufacture your boat. (Trailer warranty limited to one year)
HULL STRUCTURE
Lifetime structural hull or deck warranty applies to the first retail owner. A testimony of hull design and structural engineering makes the warranty transferable to the second owner; limitations apply.
OSMOSIS
A prorated warranty covers osmotic hull blistering for five years. Our engineered Vinyl Esther barrier coat has the best track record in the industry for minimizing hull blistering, a process of construction that gives you peace of mind.
* Not all of the Winning Edge limited warranty is transferable. Ask your dealer for all limited warranty details. Warranty applicable to North America Only. For all other locations please contact your servicing dealer.
